Thrust Spherical Roller Bearings

Advanced search

QDY

Thrust Spherical Roller Bearings

QDY

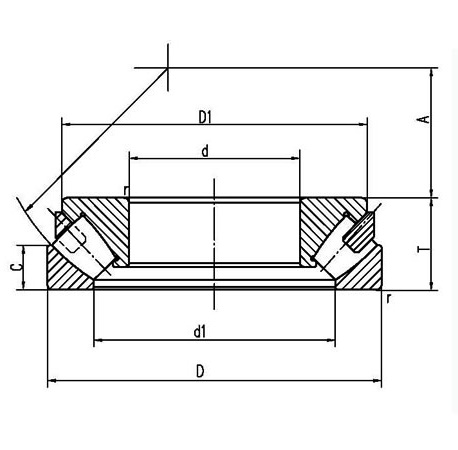

select	Inquiry	Bearing NO.	Boundary dimensions(mm)									Basic load ratings(kN)		Limiting speed(rpm)		Weight (kg)
select	Inquiry	Bearing NO.	d	D	T	d1	D1	B	C	A	r min	Cr	Cor	Grease	Oil	Refer
		29340	200	340	85	261	318	29	41	116	4	1200	2330	700	950	34
		29340K	200	340	85	261	318	54.5	41	116	4	1200	2330	700	950	34
		29440	200	400	122	267.5	360	44	56.7	122	5	2270	4300	600	800	83.5
		29344	220	360	85	277.5	330	29	40.7	125	4	1390	2800	670	900	28.6
		29348	240	380	85	298.5	360	29	1.7	135	4	1610	6100	600	800	35.4
		29448	240	440	122	316	400	43	60	142	6	2920	10100	530	750	96.1
		29256	280	380	60	322.5	364	19	29.5	150	2.1	895	2130	700	1000	21.7
		29468	340	620	170	449.5	560	61	80	201	7.5	4550	9750	500	700	218
		29376	380	600	132	475	561	44	61.4	216	6	3280	15200	450	650	129
		29280	400	540	85	460	510	27	42	212	4	1720	4700	500	700	64.6
		29380	400	620	132	489	582	44	64.7	225	6	3500	16800	440	620	153
		29384	420	650	140	514.5	610	48	6.8	235	6	3800	17900	420	600	175
		29292	460	620	95	525.5	590	30	49.4	245	5	2280	12900	400	580	74.7
		292/500	500	670	103	572	640	33	50.5	268	5	2550	14600	380	540	117
		294/500	500	870	224	648	790	81	106	290	9.5	8550	39500	320	460	589
		292/530	530	710	109	640	680	35	54	288	5	2830	1660	350	500	118
		292/560	560	750	115	640	715	40	56.8	302	5	3100	8600	360	480	131
		292/800	800	1060	155	907.5	1010	50	80	426	7.5	5650	36000	240	340	343
		292/1060	1060	1400	206	1208	1335	66	100	566	9.5	9600	62000	180	260	767
		9069430	150	300	90	220	270	60	48	69	4.7	995	1710	630	900	27.3
