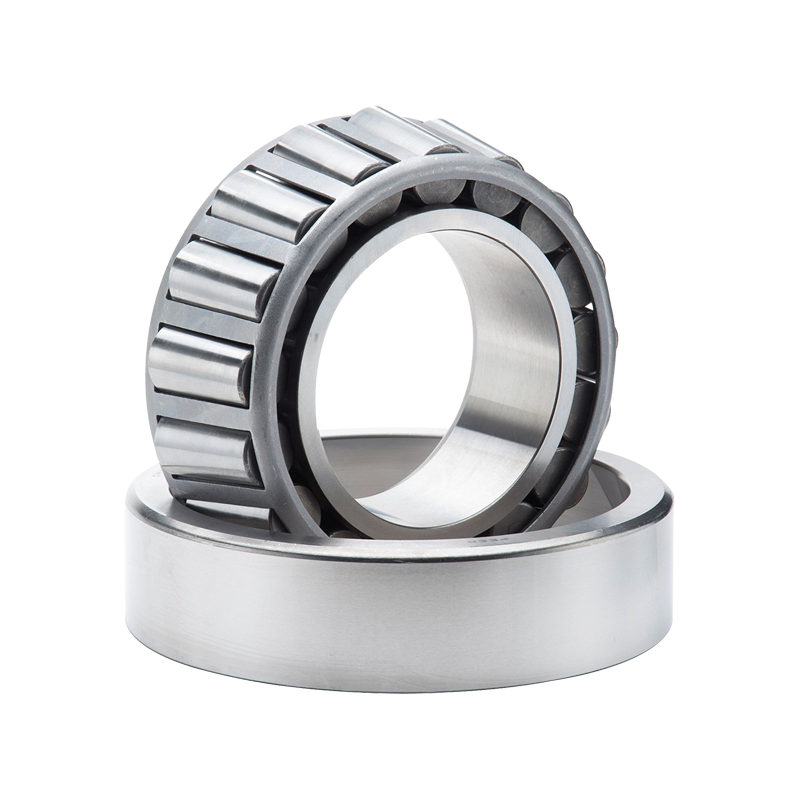

Single Row Tapered Roller Bearings (Inch Series)


Single Row Tapered Roller Bearings (Inch Series)
QDY
Single Row Tapered Roller Bearings (Inch Series)
QDY
>>
<<
selectInquiryBearing NO. Boundary dimensions(mm) Basic load ratings(kN) Limiting speed(rpm) Application pointAbutment and fillet dimensions(mm) Value Weight (kg)
dDTBCr 1.2minr 3.4minCrCorGreaseOilada maxdb minDa maxDb minra maxrb maxeYY0Refer
HH221440/HH221410 95.25 190.5 57.15 57.531 46.038 7.9 3.2 440 602 2300 3400 42.5 115 119 168 179 7.9 3.2 0.33 1.79 0.99 7.37
42381/42584 96.838 148.43 28.575 28.971 21.433 3.6 3 143 225 2300 3400 31.9 108 108 133 140 3.6 3 0.49 1.22 0.67 1.64
90381/90744 96.838 188.913 50.8 46.038 31.75 3.6 3.2 276 357 2300 3400 63 108 115 161 179 3.6 3.2 0.87 0.69 0.38 5.68
52387/52637 98.425 161.925 36.512 36.116 26.195 3.6 3.2 180 288 2200 3300 36 110 114 142 151 3.6 3.2 0.47 1.26 0.69 2.74
685/672 98.425 168.275 41.275 41.275 30.162 3.6 3.2 224 349 2200 3300 38.6 110 115 147 156 3.6 3.2 0.47 1.28 0.7 3.51
779/772 98.425 180.975 47.625 48.006 38.1 3.6 3.2 288 438 2100 3200 39.5 110 120 156 166 3.6 3.2 0.39 1.56 0.86 5.2
HH421246/HH421210 98.425 184.15 63.5 63.5 52.388 6.4 3.2 445 687 2100 3200 46.2 115 117 161 174 6.4 3.2 0.37 1.6 0.88 7.45
866/854 98.425 190.5 57.15 57.531 44.45 3.6 3.2 353 504 2100 3200 40 110 120 162 172 3.6 3.2 0.33 1.79 0.99 6.99
HH221442/HH221410 98.425 190.5 57.15 57.531 46.038 3.6 3.2 440 602 2100 3200 42.5 110 119 168 179 3.6 3.2 0.33 1.79 0.99 7.18
HM321245/HM321210 99.212 171.45 49.213 49.213 38.1 3.6 3.2 295 434 2200 3200 36.6 110 116 153 162 3.6 3.2 0.34 1.75 0.96 4.45
LM720646/LM720611 99.975 144.975 25.4 25.4 19.05 1.6 1.6 125 216 2200 3200 30.1 107 113 134 140 1.6 1.6 0.46 1.31 0.72 1.34
HM220149/HM220110 99.975 156.975 42 42 34 7.9 3.6 245 396 2200 3200 32.4 112 120 143 150 7.9 3.6 0.33 1.8 0.99 2.9
944A/933 99.975 210 67 66.675 53.975 3.6 3.2 450 674 2200 3200 47.9 111 135 181 193 3.6 3.2 0.33 1.84 1.01 10.9
HH224334/HH224310 99.975 212.725 66.675 66.675 53.975 3.6 3.2 513 699 2200 3200 47.6 111 134 190 201 3.6 3.2 0.33 1.84 1.01 10.9
HH221447/HH221410 99.982 190.5 57.15 57.531 46.038 6.4 3.2 440 602 2200 3200 42.5 117 119 168 179 6.4 3.2 0.33 1.79 0.99 7.06
JM720249/JM720210 100 155 36 35 28 3 2.5 191 325 1900 2800 36.8 118 108 140 150 3 2.5 0.47 1.3 0.7 2.45
JHM720249/JHM720210 100 160 41 40 32 3 2.5 239 380 1900 2800 38.2 107 119 144 155 3 2.5 0.47 1.3 0.7 3.07
52394X/52637 100 161.925 36.513 36.116 26.195 3.6 3.2 180 288 1900 2800 36 111 114 142 151 3.6 3.2 0.47 1.26 0.69 2.67
783/772A 100 174.625 47.625 48.006 38.1 3.6 3.2 288 438 1800 2700 39.4 111 120 156 166 3.6 3.2 0.39 1.56 0.86 4.57
783/772 100 180.975 47.625 48.006 38.1 3.5 3.3 258 375 1800 2700 39.1 111 123 160 172 3.5 3.3 0.39 1.6 0.86 4.96
Previous1234567...4950Next
>>
<<
