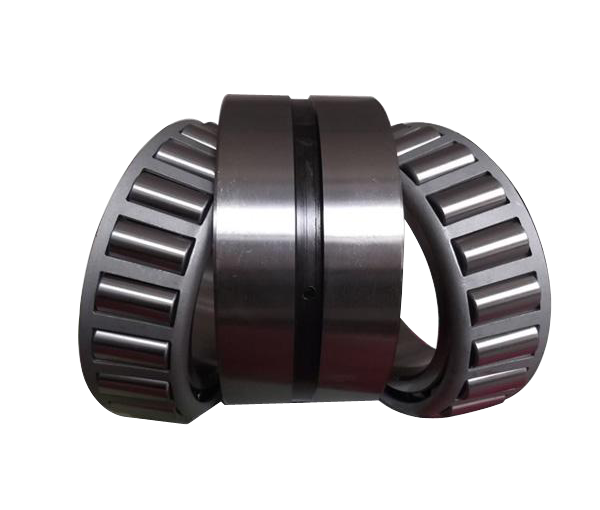

Double Row Tapered Roller Bearing With Double Cone (Inch Series)

QDY

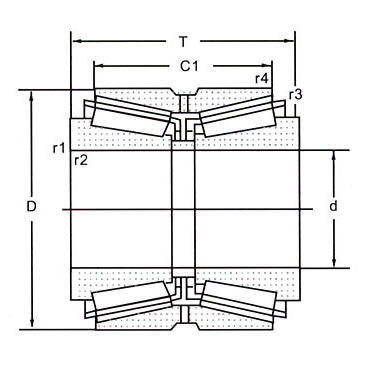

select	Inquiry	Bearing NO.	Boundary dimensions(mm)						Basic load ratings(kN)		Design	Abutment and fillet dimensions(mm)				Value				Weight (kg)
select	Inquiry	Bearing NO.	d	D	T	C	r 1.2min	r 3.4min	Cr	Cor	Design	da min	Da max	rb max	ra max	e	Y1	Y2	Y0	Refer
		783/774D	100	180.975	104.775	85.725	1.6	3.6	440	750	1	123	171	1.6	3.6	0.39	1.8	2.6	1.7	10.6
		52400/52637D	101.6	161.925	82.548	61.912	0.8	3.6	310	570	1	120	155	0.8	3.6	0.47	1.4	2.1	1.4	5.7
		687/672D	101.6	168.275	92.075	69.85	0.8	3.6	380	685	1	121	161	0.8	3.6	0.47	1.4	2.1	1.4	7.3
		780/773D	101.6	180	104.775	85.725	0.8	3.6	440	750	1	124	171	0.8	3.6	0.39	1.8	2.6	1.7	10.2
		780/774D	101.6	180.975	104.775	85.725	1.6	3.6	440	750	1	124	171	1.6	3.6	0.39	1.8	2.6	1.7	10.4
		861/854D	101.6	190.5	127	101.6	1.6	8	605	1000	1	130	180	1.6	8	0.33	2	3	2	14.4
		HH221449/HH221410D	101.6	190.5	127	104.775	1.6	8	665	1040	1	131	183	1.6	8	0.33	2	3	2	14.3
		98400/98789D	101.6	200.025	115.888	80.216	2.3	3.6	540	850	1	132	190	2.3	3.6	0.63	1.1	1.6	1	14.8
		HH224335/HH224310D	101.6	212.725	142.875	117.475	1.6	7	975	1620	1	137	205	1.6	7	0.33	2.1	3.1	2	23.3
		782/773D	104.775	180	104.775	85.725	0.8	3.6	440	750	1	125	171	0.8	3.6	0.39	1.8	2.6	1.7	9.7
		786/774D	104.775	180.975	104.775	85.725	1.6	6.4	440	750	1	128	171	1.6	6.4	0.39	1.8	2.6	1.7	9.9
		71412/71751D	104.775	190.5	106.632	80.962	1.6	3.6	510	925	1	131	182	1.6	3.6	0.42	1.6	2.4	1.6	12.2
		56418/56650D	106.362	165.1	82.55	63.5	0.8	3.6	335	645	1	126	160	0.8	3.6	0.5	1.4	2	1.3	5.9
		L521949/L521910D	107.95	146.05	49.212	39.688	0.8	1.5	147	330	1	120	141	0.8	1.5	0.39	1.7	2.6	1.7	2.2
		56425/56650D	107.95	165.1	82.55	63.5	0.8	3.6	335	645	1	127	160	0.8	3.6	0.5	1.4	2	1.3	5.7
		71425/71751D	107.95	190.5	106.362	80.962	1.6	3.6	510	925	1	133	182	1.6	3.6	0.42	1.6	2.4	1.6	11.8
		HH224340/HH224310D	107.95	212.725	142.875	117.475	1.6	8	975	1620	1	142	205	1.6	8	0.33	2.1	3.1	2	22.1
		EE342043/342091D	107.95	234.95	111.125	82.55	1.6	6.4	610	840	1	144	222	1.6	6.4	0.43	1.6	2.3	1.5	20
		71432/71751D	109.952	190.5	106.362	80.962	1.6	3.6	510	925	1	134	182	1.6	3.6	0.42	1.6	2.4	1.6	11.5
		64433/64700D	109.952	177.8	92.075	69.85	0.8	3.6	400	750	1	132	173	0.8	3.6	0.52	1.3	1.9	1.3	8
